Bixpy Universal Versa Rudder With Steering

$299.00

Only 1 left in stock

SKU AC-RUD-2301 Category Brand

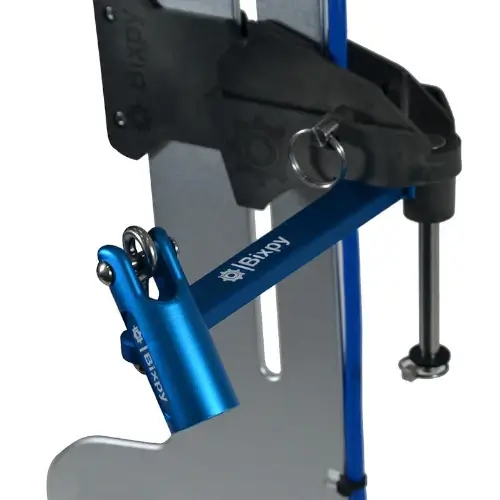

Bixpy Universal Versa Rudder with V-Arm Steering Control Bracket

Bixpy Universal Versa Rudder With V-Arm Steering

Bixpy Versa Rudder is the first rudder in the market specifically designed to accept a motor as an option. The rudder is made from anodized aluminum and glass-filled nylon and ready to take on any adventure, saltwater or fresh! The Versa Rudder™ also offers a tail for better turning, wheels to assist raising/lowering the rudder, a quick-release pin, and V-Arm™ Steering control.

The Versa Rudder™ offers a molded 10mm stainless steel pin that offers easy installation and can replace most other manufacturer rudders in seconds! It also offers a robust double hinged, 90° Slide & Stow mechanism that gets the rudder completely out of the water in a heartbeat!

The Versa Rudder™ also features a gravity driven locking mechanism that allows the rudder to lock into place when motorized in forward or reverse. Steering our rudder can be done by using the existing rudder steering lines on your watercraft with our included V-ARM™ Steering Bracket. Note, the V-Arm steering system is only compatible with kayaks with left / right steering lines.

Bixpy-universal Versa rudder V-Arm steering

Features:

  • Mounts into any standard rudder 10mm pin hole
  • Gravity deployment system
  • 90° quick Slide & Stow feature
  • “Lock-down” mechanism for using the rudder in reverse speeds
  • 18in. x 4in. rudder blade
  • Kick up feature for shallow water and hazards
  • Removable cap for mounting Bixpy Jet Motor
  • The top of the pin to the top of the motor measures 12.25 inches or 305 mm
  • Pin length is 85 mm. Gap from pin to blade is 38 mm
  • To work effectively, the Bixpy motor needs to be about 2″ to 3″ below waterline

Includes:

  • Bixpy Versa Rudder™
  • Bixpy Clam Cleat
  • Pull up rope
  • V-Arm Steering System

Universal Versa Rudder Adapter Installation
